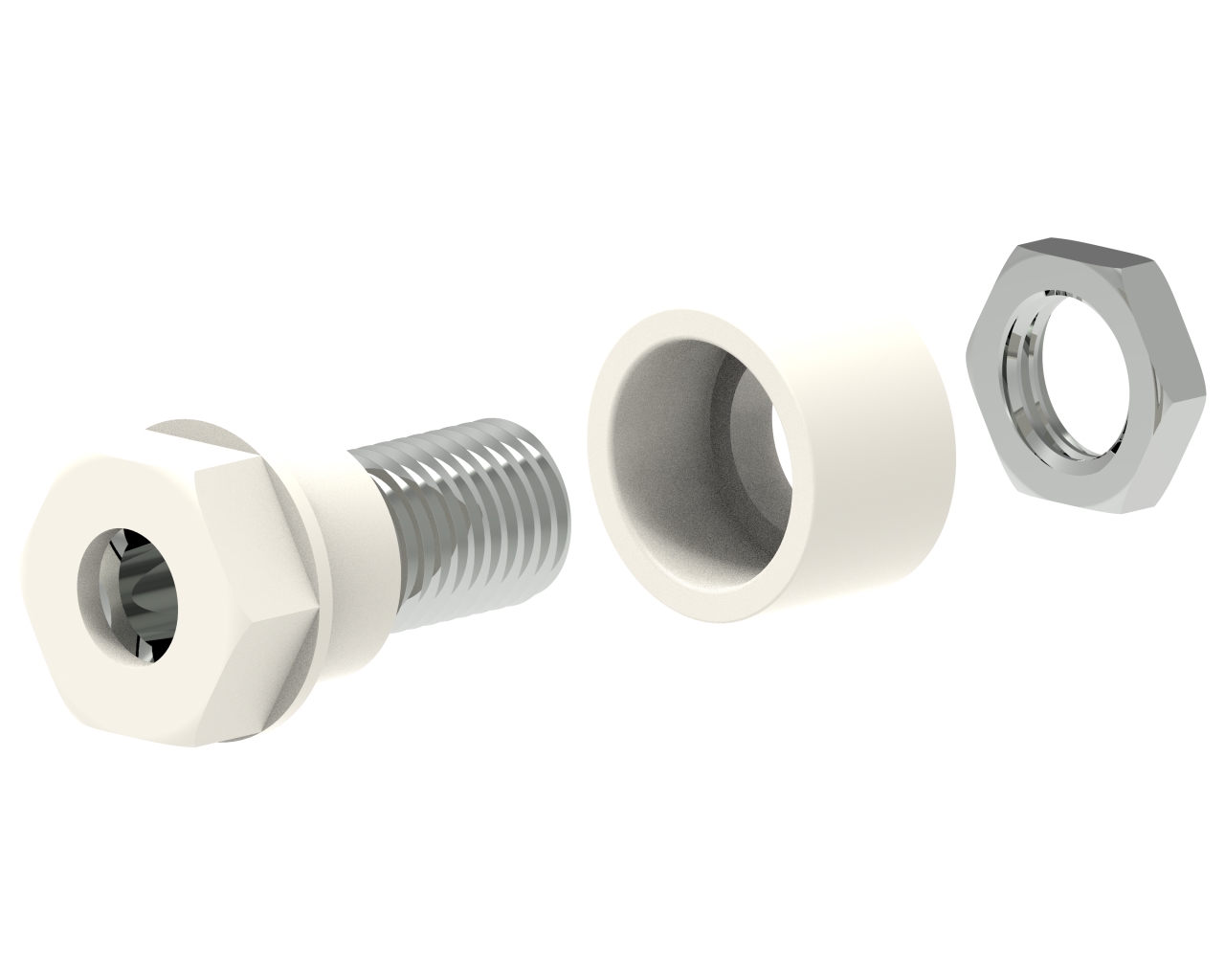

CT2230-9

Overview

Models

Image	Model	Description	MSRP	Status	Warranty	Type	Rated Voltage	Color	Contact Material	Insulation Material	Max Current	Max Voltage	UOM
	CT2230-0	4mm Socket, Thru Hole - Black	$1.40	Active Catalog	1 Year	Panel Mount	30 VAC / 60 VDC	Black	Brass, Nickel Plated	Polyamide	36 A	1200 V AC/DC	EA
	CT2230-2	4mm Socket, Thru Hole - Red	$1.40	Active Catalog	1 Year	Panel Mount	30 VAC / 60 VDC	Red	Brass, Nickel Plated	Polyamide	36 A	1200 V AC/DC	EA
	CT2230-4	4mm Socket, Thru Hole - Yellow	$1.40	Active Catalog	1 Year	Panel Mount	30 VAC / 60 VDC	Yellow	Brass, Nickel Plated	Polyamide	36 A	1200 V AC/DC	EA
	CT2230-5	4mm Socket, Thru Hole - Green	$1.40	Active Catalog	1 Year	Panel Mount	30 VAC / 60 VDC	Green	Brass, Nickel Plated	Polyamide	36 A	1200 V AC/DC	EA
	CT2230-6	4mm Socket, Thru Hole - Blue	$1.40	Active Catalog	1 Year	Panel Mount	30 VAC / 60 VDC	Blue	Brass, Nickel Plated	Polyamide	36 A	1200 V AC/DC	EA
	CT2230-9	4mm Socket, Thru Hole - White	$1.90	Special Order	1 Year	Panel Mount	30 VAC / 60 VDC	White	Brass, Nickel Plated	Polyamide	36 A	1200 V AC/DC	EA

Specifications

Type

Panel Mount

Rated Voltage

30 VAC / 60 VDC

Color

White

Contact Material

Brass, Nickel Plated

Insulation Material

Polyamide

Max Current

36 A

Max Voltage

1200 V AC/DC

Operating Temperature

-20 to +80 degC

Export Control Classification Number (ECCN)

EAR99

REACH Compliance

Compliant

RoHS Compliance

RoHS 2 (2015/863/EU) Compliant

Schedule B Number

8536.90.4000

Country of Origin

France

Lead Time

56 days

See More Specifications

Product Drawing

Documents

• Product DrawingProduct Drawing
• REACH StatementCompany Document
• RoHS DirectiveCompany Document
• PFAS - Certificate of ComplianceCompany Document
