CT2228-6
CT2228 Series

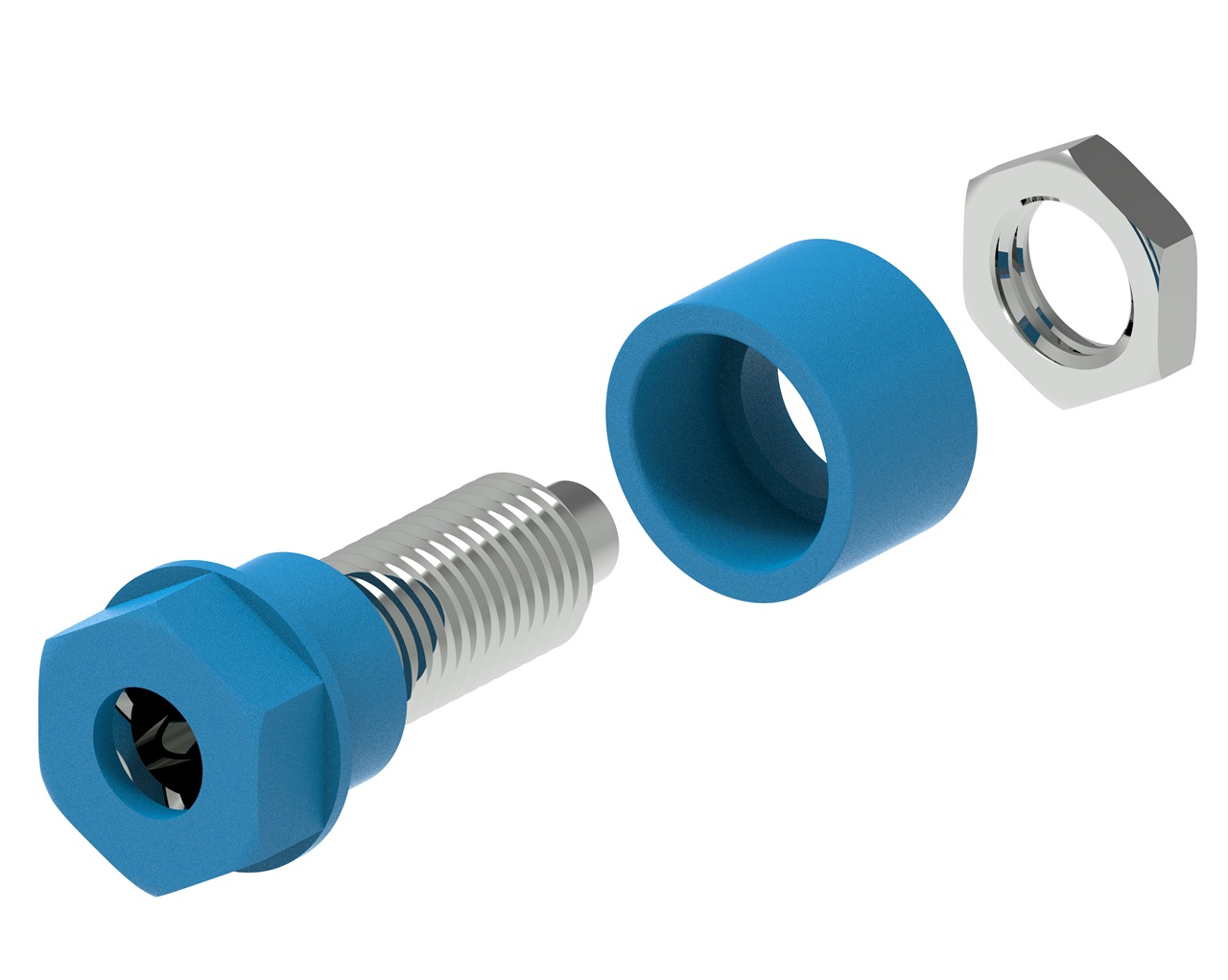

Active CatalogBanana Jack Panel Mount
4 mm Socket, Solder Hole - Blue
$1.401 Year Warranty
Where to Buy
Overview
Standard 4 mm insulated banana jack. Solder hole for signal termination
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2228-0 | 4mm Socket, Solder Hole - Black | $1.40 | Active Catalog | 1 Year | Panel Mount | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2228-2 | 4mm Socket, Solder Hole - Red | $1.40 | Active Catalog | 1 Year | Panel Mount | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2228-4 | 4mm Socket, Solder Hole - Yellow | $1.40 | Active Catalog | 1 Year | Panel Mount | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2228-5 | 4mm Socket, Solder Hole - Green | $1.40 | Active Catalog | 1 Year | Panel Mount | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2228-6 | 4mm Socket, Solder Hole - Blue | $1.40 | Active Catalog | 1 Year | Panel Mount | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2228-9 | 4mm Socket, Solder Hole - White | $1.90 | Special Order | 1 Year | Panel Mount | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
Specifications
- Type
- Panel Mount
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Blue
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- 1200 V AC/DC
- Operating Temperature
- -20 to +80 degC
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
