CT2213-6
CT2213 Series
Active CatalogBanana Jack DIY

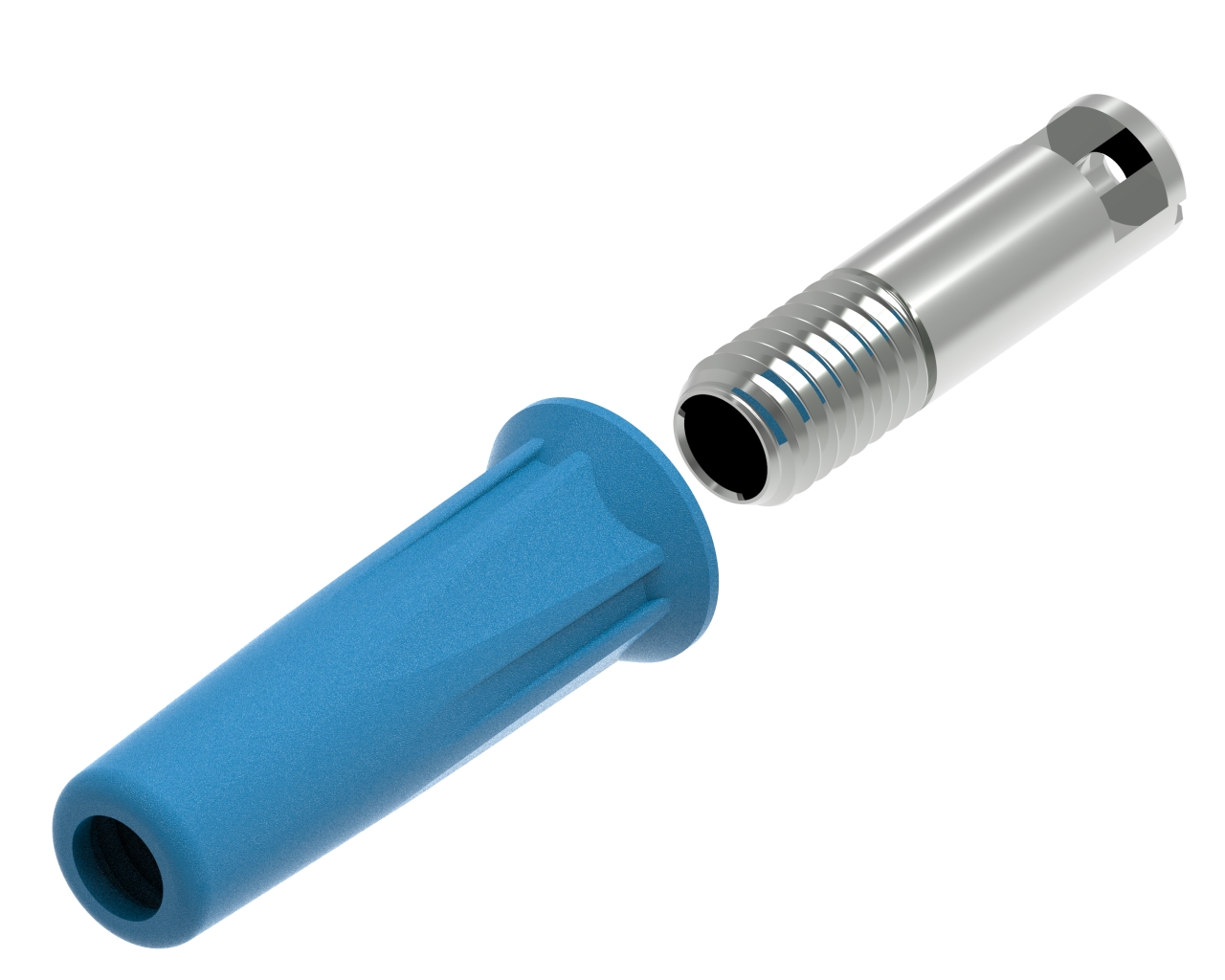

4 mm Banana Jack, Do It Yourself Solder - Blue
$1.651 Year Warranty
Where to Buy
Overview
Insulated 4mm in-line banana jack for wire assembly. Do it yourself connection, solder wire attachment then thread jack into the insulator.
- Materials: Body: Polyamide (Nylon); Jack: Brass, Nickel Plt
- Available in 6 colors
- Do It Yourself connection
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2213-0 | 4mm Jack, DIY Solder - Black | $1.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2213-2 | 4mm Jack, DIY Solder - Red | $1.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2213-4 | 4mm Jack, DIY Solder - Yellow | $1.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2213-5 | 4mm Jack, DIY Solder - Green | $1.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2213-6 | 4mm Jack, DIY Solder - Blue | $1.65 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
 |
CT2213-9 | 4mm Jack, DIY Solder - White | $2.15 | Special Order | 1 Year | Inline | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 36 A | 1200 V AC/DC | EA |
Specifications
- Type
- Inline
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Blue
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- 1200 V AC/DC
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
