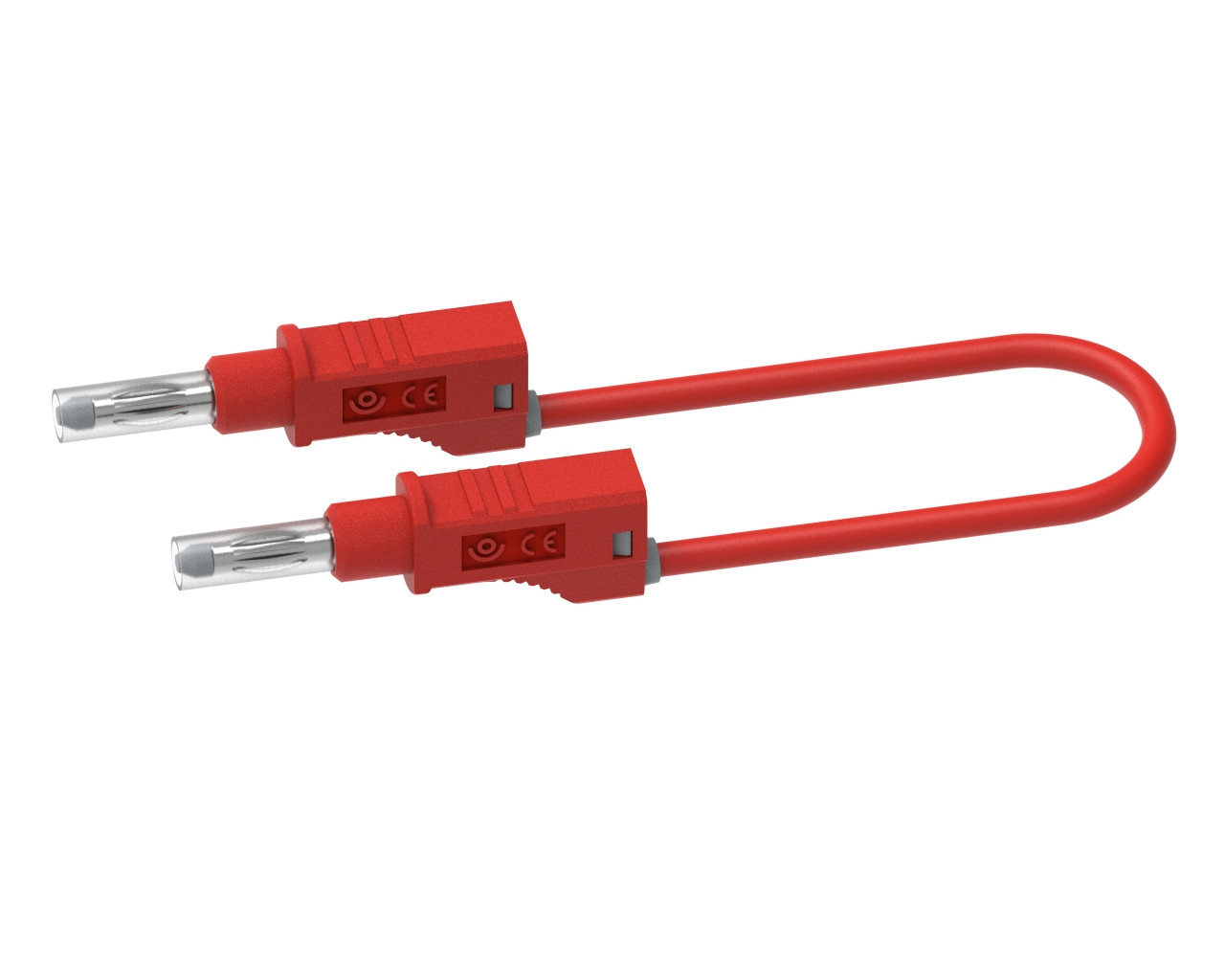

CT2148-150-2
CT2148 Series
Active CatalogStacking Banana Plug Test Lead
Lead, 4mm StkRShth P-P - SILIC 0.75, 150cm, Red
$18.001 Year Warranty
Where to Buy
Custom cables can be designed in the Test Lead Builder
Overview
Added safety and protection when standard banana jack connections are encountered. With Silicone jacketed wire, 0.75 mm2 (18 AWG). Clear covering sleeve retracts as you plug into the jack. Banana plug includes a Grey plastic insulation tip for added protection.
- Materials: Body: Polyamide; Contact: Brass, Nickel Plt.
- Banana Contact: BeCu, Nickel Plt.
- Meets IEC 61010-031 safety specifications
- Available in 6 standard lengths
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Max Current | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2148-100-0 | Lead, 4mm StkRShth P-P - SILIC 0.75, 100cm, Black | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Black | 12 A | 18 AWG | EA |
 |
CT2148-100-2 | Lead, 4mm StkRShth P-P - SILIC 0.75, 100cm, Red | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Red | 12 A | 18 AWG | EA |
 |
CT2148-100-4 | Lead, 4mm StkRShth P-P - SILIC 0.75, 100cm, Yellow | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Yellow | 12 A | 18 AWG | EA |
 |
CT2148-100-5 | Lead, 4mm StkRShth P-P - SILIC 0.75, 100cm, Green | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Green | 12 A | 18 AWG | EA |
 |
CT2148-100-6 | Lead, 4mm StkRShth P-P - SILIC 0.75, 100cm, Blue | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Blue | 12 A | 18 AWG | EA |
 |
CT2148-100-9 | Lead, 4mm StkRShth P-P - SILIC 0.75, 100cm, White | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | White | 12 A | 18 AWG | EA |
 |
CT2148-150-0 | Lead, 4mm StkRShth P-P - SILIC 0.75, 150cm, Black | $18.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Black | 12 A | 18 AWG | EA |
 |
CT2148-150-2 | Lead, 4mm StkRShth P-P - SILIC 0.75, 150cm, Red | $18.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Red | 12 A | 18 AWG | EA |
 |
CT2148-150-4 | Lead, 4mm StkRShth P-P - SILIC 0.75, 150cm, Yellow | $19.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Yellow | 12 A | 18 AWG | EA |
 |
CT2148-150-5 | Lead, 4mm StkRShth P-P - SILIC 0.75, 150cm, Green | $19.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Green | 12 A | 18 AWG | EA |
 |
CT2148-150-6 | Lead, 4mm StkRShth P-P - SILIC 0.75, 150cm, Blue | $18.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Blue | 12 A | 18 AWG | EA |
 |
CT2148-150-9 | Lead, 4mm StkRShth P-P - SILIC 0.75, 150cm, White | $19.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | White | 12 A | 18 AWG | EA |
 |
CT2148-200-0 | Lead, 4mm StkRShth P-P - SILIC 0.75, 200cm, Black | $20.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Black | 12 A | 18 AWG | EA |
 |
CT2148-200-2 | Lead, 4mm StkRShth P-P - SILIC 0.75, 200cm, Red | $20.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Red | 12 A | 18 AWG | EA |
 |
CT2148-200-4 | Lead, 4mm StkRShth P-P - SILIC 0.75, 200cm, Yellow | $22.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Yellow | 12 A | 18 AWG | EA |
 |
CT2148-200-5 | Lead, 4mm StkRShth P-P - SILIC 0.75, 200cm, Green | $22.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Green | 12 A | 18 AWG | EA |
 |
CT2148-200-6 | Lead, 4mm StkRShth P-P - SILIC 0.75, 200cm, Blue | $20.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Blue | 12 A | 18 AWG | EA |
 |
CT2148-200-9 | Lead, 4mm StkRShth P-P - SILIC 0.75, 200cm, White | $20.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | White | 12 A | 18 AWG | EA |
 |
CT2148-25-0 | Lead, 4mm StkRShth P-P - SILIC 0.75, 25cm, Black | $13.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Black | 12 A | 18 AWG | EA |
 |
CT2148-25-2 | Lead, 4mm StkRShth P-P - SILIC 0.75, 25cm, Red | $13.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Red | 12 A | 18 AWG | EA |
 |
CT2148-25-4 | Lead, 4mm StkRShth P-P - SILIC 0.75, 25cm, Yellow | $13.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Yellow | 12 A | 18 AWG | EA |
 |
CT2148-25-5 | Lead, 4mm StkRShth P-P - SILIC 0.75, 25cm, Green | $14.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Green | 12 A | 18 AWG | EA |
 |
CT2148-25-6 | Lead, 4mm StkRShth P-P - SILIC 0.75, 25cm, Blue | $14.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Blue | 12 A | 18 AWG | EA |
 |
CT2148-25-9 | Lead, 4mm StkRShth P-P - SILIC 0.75, 25cm, White | $14.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | White | 12 A | 18 AWG | EA |
 |
CT2148-50-0 | Lead, 4mm StkRShth P-P - SILIC 0.75, 50cm, Black | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Black | 12 A | 18 AWG | EA |
 |
CT2148-50-2 | Lead, 4mm StkRShth P-P - SILIC 0.75, 50cm, Red | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Red | 12 A | 18 AWG | EA |
 |
CT2148-50-4 | Lead, 4mm StkRShth P-P - SILIC 0.75, 50cm, Yellow | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Yellow | 12 A | 18 AWG | EA |
 |
CT2148-50-5 | Lead, 4mm StkRShth P-P - SILIC 0.75, 50cm, Green | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Green | 12 A | 18 AWG | EA |
 |
CT2148-50-6 | Lead, 4mm StkRShth P-P - SILIC 0.75, 50cm, Blue | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Blue | 12 A | 18 AWG | EA |
 |
CT2148-50-9 | Lead, 4mm StkRShth P-P - SILIC 0.75, 50cm, White | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | White | 12 A | 18 AWG | EA |
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 150 cm
- Color
- Red
- Max Current
- 12 A
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm²
- Jacket Material
- Silicone
- OD
- 3.7 mm (0.146")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 90 days
