Product resources
CT2143-50-0
CT2143 Series
Active Catalog2mm Plug to Plug

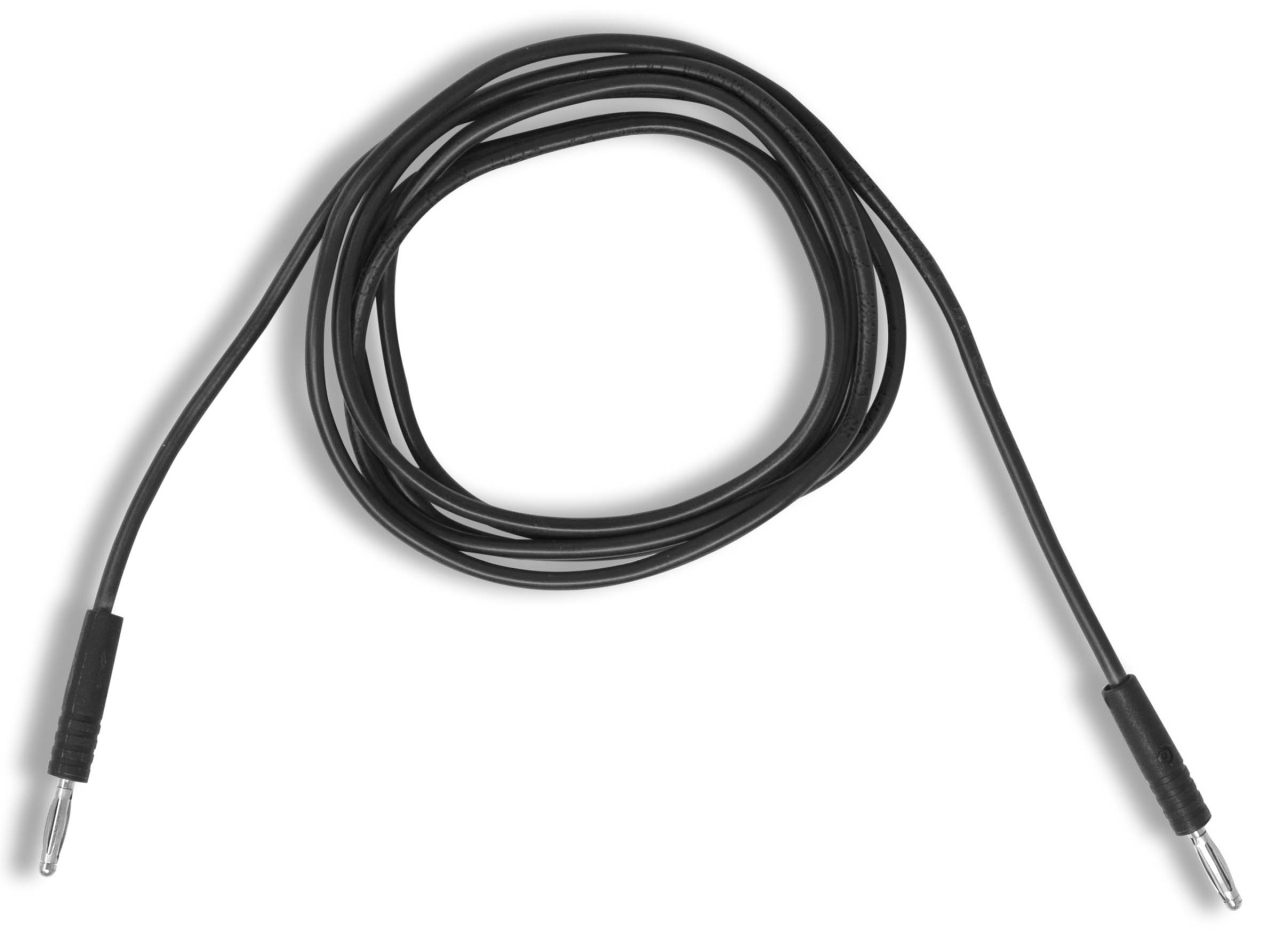

Lead, 2mm P-P - SILIC 0.40, 50cm, Black
$9.001 Year Warranty
Where to Buy
Overview
2 mm Plug to Plug wire for easy connections in both 50 cm and 100 cm lengths.
Materials:
- Body & spring: Brass, Ni coated
- Contact Insulation: Polypropylene (PP)
- Wire Insulation: Silicone
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Rated Voltage | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2143-100-0 | Lead, 2mm P-P - SILIC 0.40, 100cm, Black | $11.00 | Active Catalog | 1 Year | 2mm Banana Plug | 2mm Banana Plug | 100 cm | Black | 30 VAC / 60 VDC | 6 A | 1,200 V AC/DC | EA |
 |
CT2143-100-2 | Lead, 2mm P-P - SILIC 0.40, 100cm, Red | $11.00 | Active Catalog | 1 Year | 2mm Banana Plug | 2mm Banana Plug | 100 cm | Red | 30 VAC / 60 VDC | 6 A | 1,200 V AC/DC | EA |
 |
CT2143-50-0 | Lead, 2mm P-P - SILIC 0.40, 50cm, Black | $9.00 | Active Catalog | 1 Year | 2mm Banana Plug | 2mm Banana Plug | 50 cm | Black | 30 VAC / 60 VDC | 6 A | 1,200 V AC/DC | EA |
 |
CT2143-50-2 | Lead, 2mm P-P - SILIC 0.40, 50cm, Red | $9.00 | Active Catalog | 1 Year | 2mm Banana Plug | 2mm Banana Plug | 50 cm | Red | 30 VAC / 60 VDC | 6 A | 1,200 V AC/DC | EA |
Specifications
- Type
- 2mm Banana Plug
- Connector A
- 2mm Banana Plug
- Length
- 50 cm
- Color
- Black
- Rated Voltage
- 30 VAC / 60 VDC
- Max Current
- 6 A
- Max Voltage
- 1,200 V AC/DC
- Jacket Material
- Silicone
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
