Product resources
CT2142-2
CT2142 Series
Active Catalog2mm Stacking Banana Plug

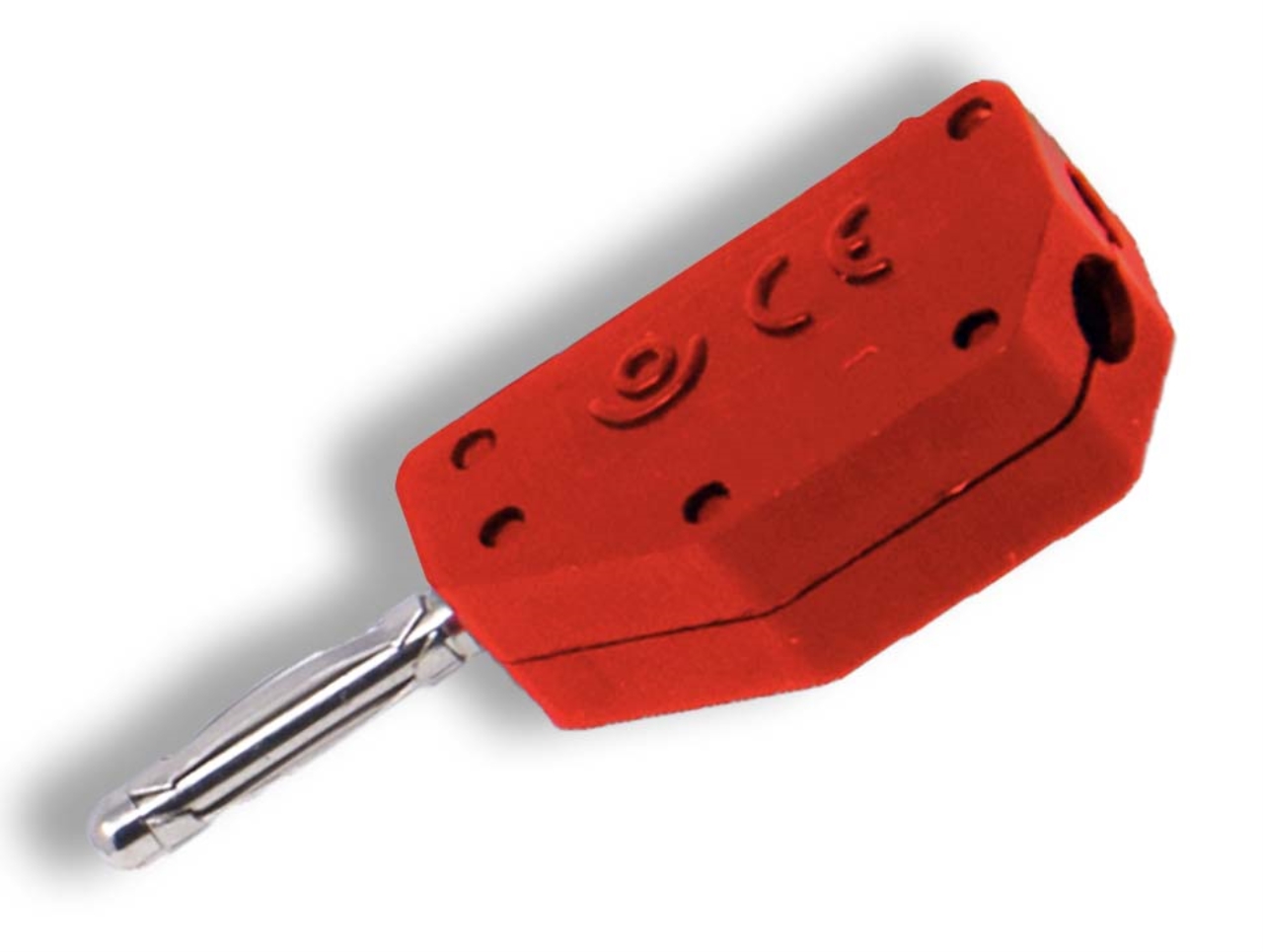

2 mm Do It Yourself Stacking Banana Plug - Unassem., Red
$2.551 Year Warranty
Where to Buy
Overview
Do-It-Yourself stacking banana plug with solder wire connection.
Materials:
- Body & spring: Brass, Ni coated
- Insulator: Nylon 6 (PA6)
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2142-0 | 2mm DIY StkP - Unassem., Black | $2.55 | Active Catalog | 1 Year | Stacking | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 10 | EA |
 |
CT2142-2 | 2mm DIY StkP - Unassem., Red | $2.55 | Active Catalog | 1 Year | Stacking | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 10 | EA |
Specifications
- Type
- Stacking
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Red
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 10
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
Documents
- DatasheetDatasheet
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
