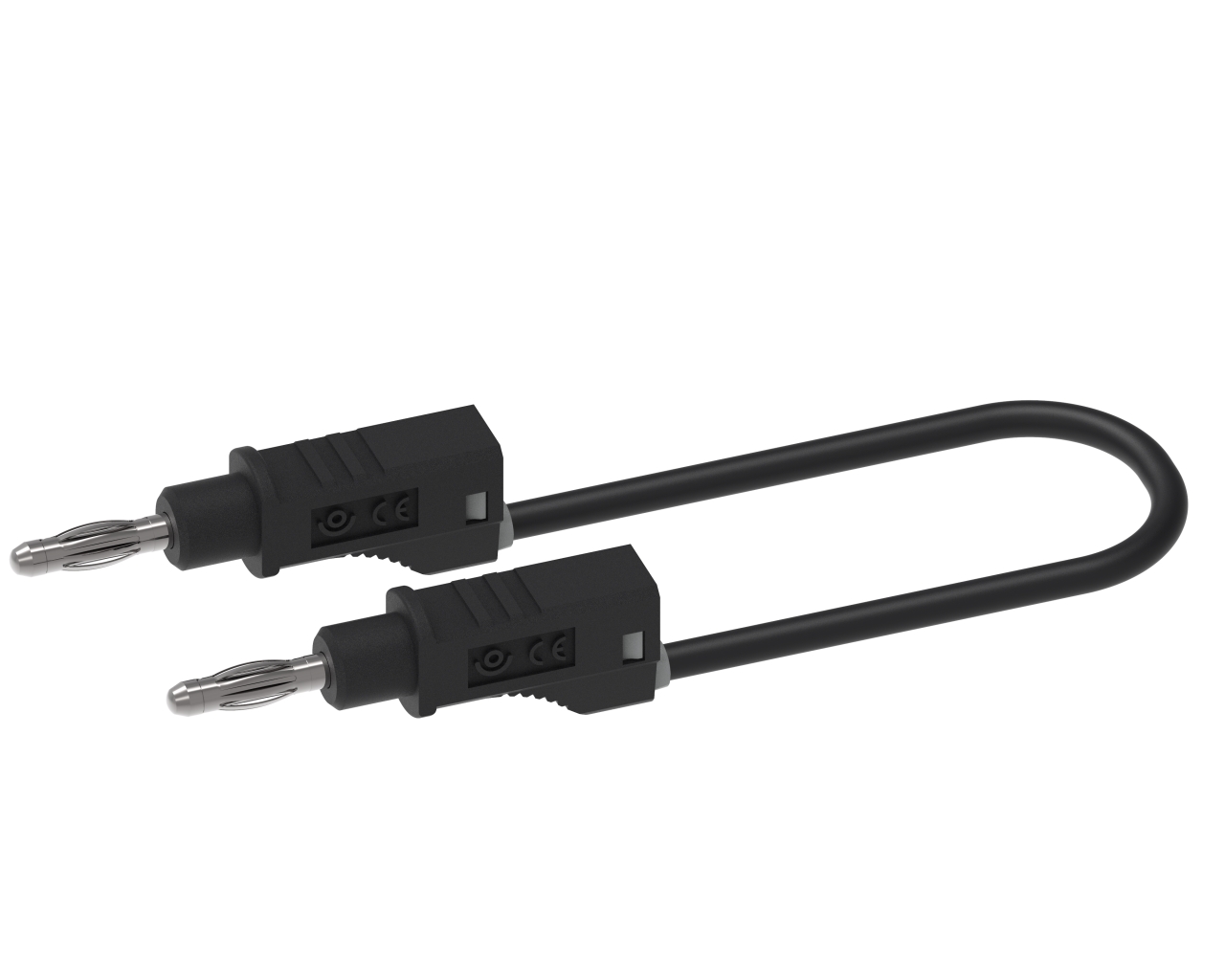

CT2131-50-0
CT2131 Series
Active CatalogBanana Plug Test Lead, Silicone
Lead, 4mm Stk P-P - SILIC 0.75, 50cm, Black
$8.801 Year Warranty
Where to Buy
Custom cables can be designed in the Test Lead Builder
Overview
4 mm Stacking Banana Plug to Stacking Banana Plug Test Lead. Highly flexible Silicone lead w. Lead for all applications. Stacking feature allows for multiple connections.
- Materials: Body: Polyamide (Nylon); Contact: Brass, Nickel Plt.
- Banana Contact: BeCu, Nickel Plt.
- Available in 6 standard lengths
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Rated Voltage | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2131-100-0 | Lead, 4mm Stk P-P - SILIC 0.75, 100cm, Black | $11.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-100-2 | Lead, 4mm Stk P-P - SILIC 0.75, 100cm, Red | $11.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-150-0 | Lead, 4mm Stk P-P - SILIC 0.75, 150cm, Black | $13.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-150-2 | Lead, 4mm Stk P-P - SILIC 0.75, 150cm, Red | $13.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-200-0 | Lead, 4mm Stk P-P - SILIC 0.75, 200cm, Black | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-200-2 | Lead, 4mm Stk P-P - SILIC 0.75, 200cm, Red | $15.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-25-0 | Lead, 4mm Stk P-P - SILIC 0.75, 25cm, Black | $8.40 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-25-2 | Lead, 4mm Stk P-P - SILIC 0.75, 25cm, Red | $8.40 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-50-0 | Lead, 4mm Stk P-P - SILIC 0.75, 50cm, Black | $8.80 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
 |
CT2131-50-2 | Lead, 4mm Stk P-P - SILIC 0.75, 50cm, Red | $8.80 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | EA |
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 50 cm
- Color
- Black
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 12 A
- Max Voltage
- 1,200 V AC/DC
- Conductor Area
- 0.75 mm²
- Jacket Material
- Silicone
- OD
- 3.7 mm (0.146")
- Operating Temperature
- -20° to +80° C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 90 days
- See More Specifications
- Product Drawing
