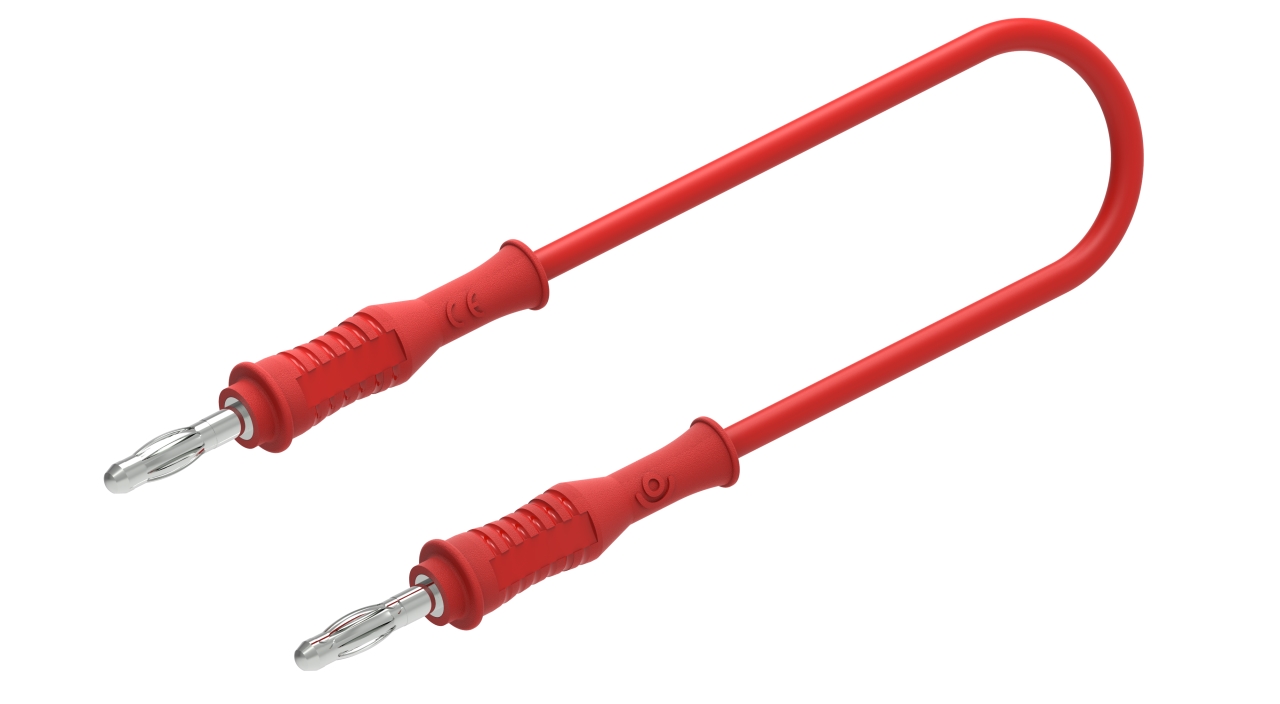

CT2062-50-2
CT2062 Series
Active CatalogBanana Plug Test Lead, Silicone
Lead, 4mm P-P - SILIC 0.75, 50cm, Red
$10.001 Year Warranty
Where to Buy
Custom cables can be designed in the Test Lead Builder
Overview
Standard 4mm straight banana plugs on both ends. With 18 AWG (0.75 mm2) silicone jacketed lead wire.
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Connector A | Length | Color | Rated Voltage | Max Current | Max Voltage | Wire Gauge | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2062-100-0 | Lead, 4mm P-P - SILIC 0.75, 100cm, Black | $13.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-100-2 | Lead, 4mm P-P - SILIC 0.75, 100cm, Red | $13.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 100 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-150-0 | Lead, 4mm P-P - SILIC 0.75, 150cm, Black | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-150-2 | Lead, 4mm P-P - SILIC 0.75, 150cm, Red | $16.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 150 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-200-0 | Lead, 4mm P-P - SILIC 0.75, 200cm, Black | $19.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-200-2 | Lead, 4mm P-P - SILIC 0.75, 200cm, Red | $19.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 200 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-25-0 | Lead, 4mm P-P - SILIC 0.75, 25cm, Black | $9.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-25-2 | Lead, 4mm P-P - SILIC 0.75, 25cm, Red | $9.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 25 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-50-0 | Lead, 4mm P-P - SILIC 0.75, 50cm, Black | $10.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Black | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
 |
CT2062-50-2 | Lead, 4mm P-P - SILIC 0.75, 50cm, Red | $10.00 | Active Catalog | 1 Year | Banana Plug | Banana Plug | 50 cm | Red | 33 VAC / 70 VDC | 12 A | 1,200 V AC/DC | 18 AWG | EA |
Specifications
- Type
- Banana Plug
- Connector A
- Banana Plug
- Length
- 50 cm
- Color
- Red
- Rated Voltage
- 33 VAC / 70 VDC
- Max Current
- 12 A
- Max Voltage
- 1,200 V AC/DC
- Wire Gauge
- 18 AWG
- Conductor Area
- 0.75 mm²
- Jacket Material
- Silicone
- OD
- 3.7 mm (0.146")
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Datasheet
