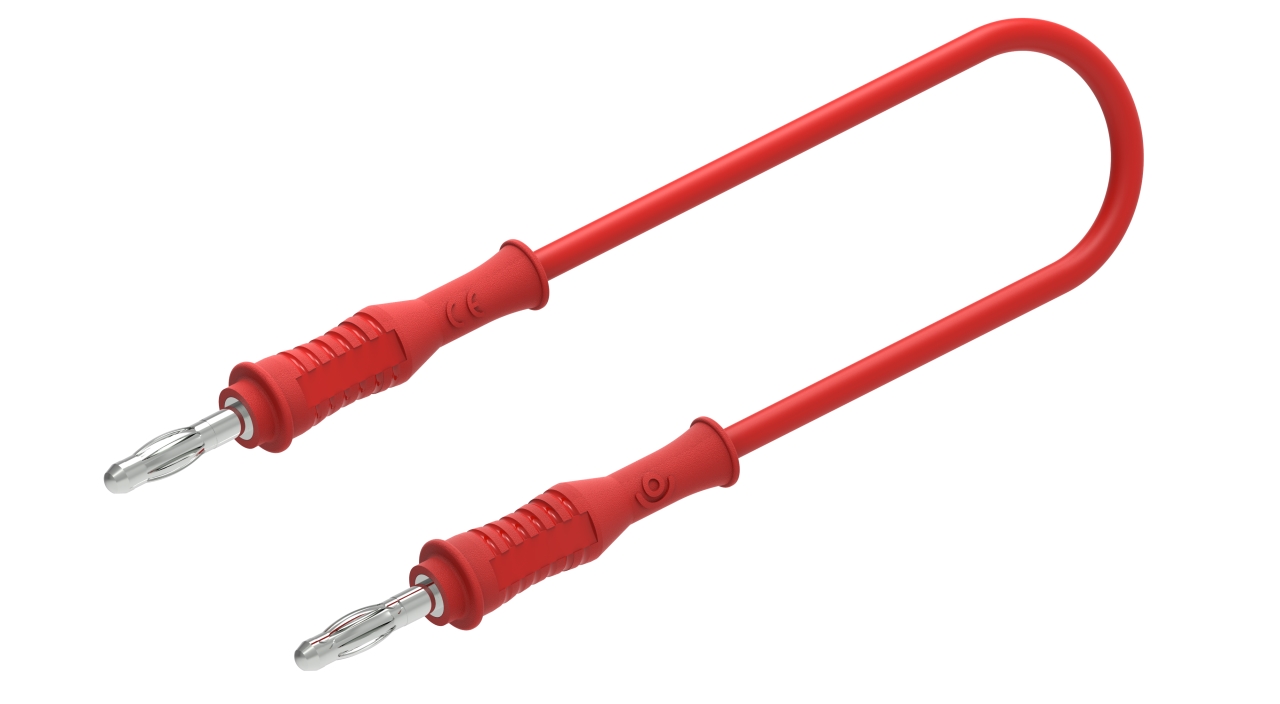

CT2060-100-2

Overview

Models

Image	Model	Description	MSRP	Status	Warranty	Type	Connector A	Length	Color	Rated Voltage	Max Current	Max Voltage	Wire Gauge	UOM
	CT2060-100-0	Lead, 4mm P-P - PVC 0.75, 100cm, Black	$10.00	Active Catalog	1 Year	Banana Plug	Banana Plug	100 cm	Black	33 VAC / 70 VDC	12 A	1,200 V AC/DC	18 AWG	EA
	CT2060-100-2	Lead, 4mm P-P - PVC 0.75, 100cm, Red	$10.00	Active Catalog	1 Year	Banana Plug	Banana Plug	100 cm	Red	33 VAC / 70 VDC	12 A	1,200 V AC/DC	18 AWG	EA
	CT2060-25-0	Lead, 4mm P-P - PVC 0.75, 25cm, Black	$8.25	Active Catalog	1 Year	Banana Plug	Banana Plug	25 cm	Black	33 VAC / 70 VDC	12 A	1,200 V AC/DC	18 AWG	EA
	CT2060-25-2	Lead, 4mm P-P - PVC 0.75, 25cm, Red	$8.25	Active Catalog	1 Year	Banana Plug	Banana Plug	25 cm	Red	33 VAC / 70 VDC	12 A	1,200 V AC/DC	18 AWG	EA
	CT2060-50-0	Lead, 4mm P-P - PVC 0.75, 50cm, Black	$8.95	Active Catalog	1 Year	Banana Plug	Banana Plug	50 cm	Black	33 VAC / 70 VDC	12 A	1,200 V AC/DC	18 AWG	EA
	CT2060-50-2	Lead, 4mm P-P - PVC 0.75, 50cm, Red	$8.95	Active Catalog	1 Year	Banana Plug	Banana Plug	50 cm	Red	33 VAC / 70 VDC	12 A	1,200 V AC/DC	18 AWG	EA

Specifications

Type

Banana Plug

Connector A

Banana Plug

Length

100 cm

Color

Red

Rated Voltage

33 VAC / 70 VDC

Max Current

12 A

Max Voltage

1,200 V AC/DC

Wire Gauge

18 AWG

Conductor Area

0.75 mm²

Jacket Material

PVC

OD

3.7 mm (0.146")

Operating Temperature

-20° to +80°C

Export Control Classification Number (ECCN)

EAR99

REACH Compliance

Compliant

RoHS Compliance

RoHS 2 (2015/863/EU) Compliant

Schedule B Number

9030.90.8010

Country of Origin

France

Lead Time

56 days

See More Specifications

Datasheet

Documents

• DatasheetDatasheet
• REACH StatementCompany Document
• RoHS DirectiveCompany Document
• PFAS - Certificate of ComplianceCompany Document
