CT2015-4
CT2015 Series
Active CatalogStacking Banana Plug

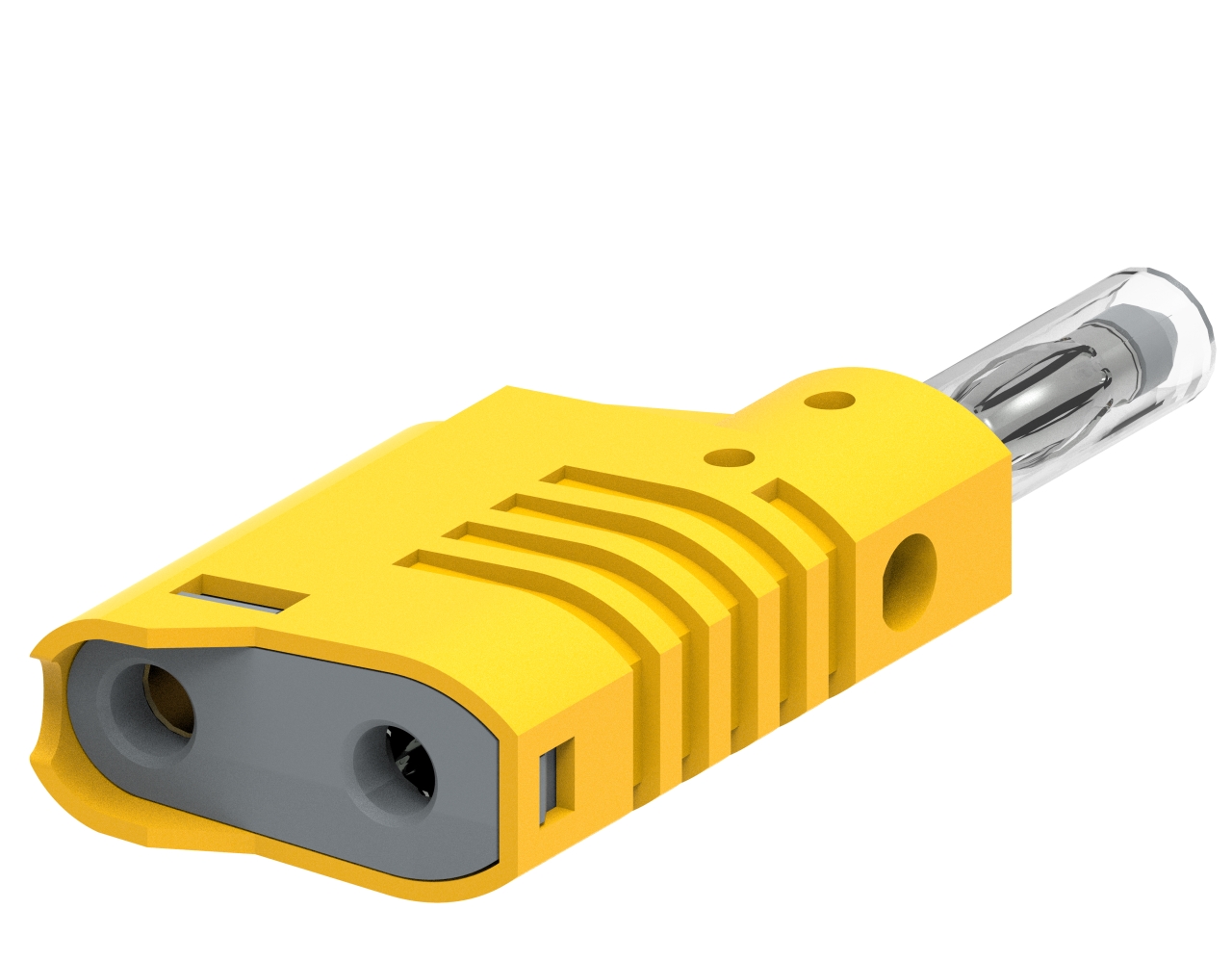

4 mm Do It Yourself RStkP, Screw - Yellow
$12.001 Year Warranty
Where to Buy
Overview
4mm Do-It-Yourself stacking plug with solderless screw connection. Plug has spring loaded cover for added safety.
- Materials: Body: Polyamide (Nylon); Plug: Brass, Nickel Plt; Contact: BeCu, Nickel Plt
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2015-0 | 4mm DIY RStkP, Screw - Black | $12.00 | Active Catalog | 1 Year | Sheathed | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2015-2 | 4mm DIY RStkP, Screw - Red | $12.00 | Active Catalog | 1 Year | Sheathed | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2015-4 | 4mm DIY RStkP, Screw - Yellow | $12.00 | Active Catalog | 1 Year | Sheathed | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2015-5 | 4mm DIY RStkP, Screw - Green | $12.00 | Active Catalog | 1 Year | Sheathed | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2015-6 | 4mm DIY RStkP, Screw - Blue | $12.00 | Active Catalog | 1 Year | Sheathed | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2015-9 | 4mm DIY RStkP, Screw - White | $12.50 | Special Order | 1 Year | Sheathed | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 36 | EA |
Specifications
- Type
- Sheathed
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Yellow
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
Documents
- Product DrawingProduct Drawing
- REACH StatementCompany Document
- RoHS DirectiveCompany Document
- PFAS - Certificate of ComplianceCompany Document
