CT2011-5
CT2011 Series
Active CatalogBanana Plug

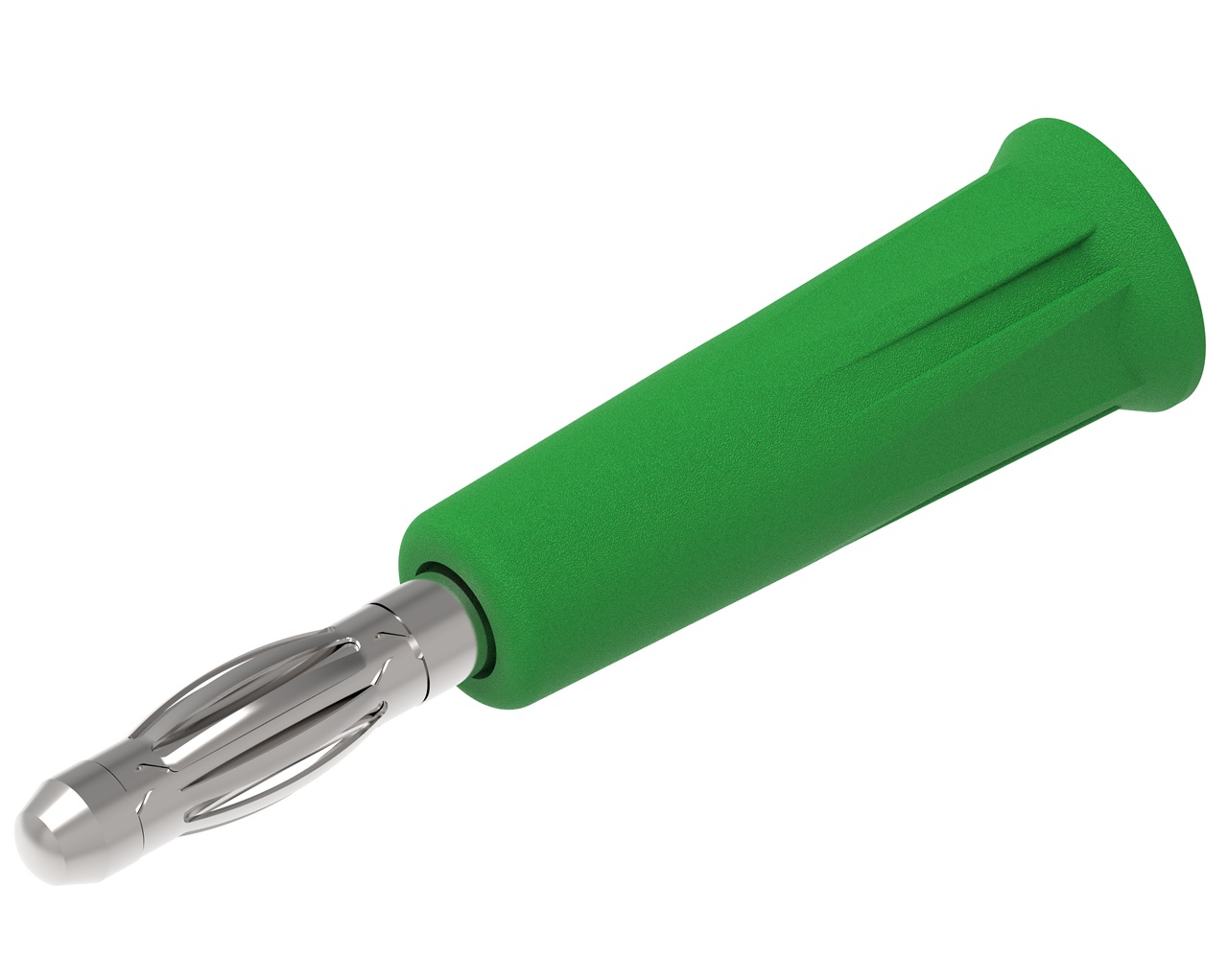

4 mm Banana Plug, Do It Yourself Screw, Green
$2.601 Year Warranty
Where to Buy
Overview
4 mm Insulated straight or in-line banana plug for do-it-yourself solderless wire assembly. Strip and clamp wire under screw then thread plug into the insulator.
Note: small screwdriver required for assembly.
Accepts up to 0.090" (2.3 mm) diameter conductor, approximately 13 AWG. Maximum wire jacket diameter 0.154" (3.9 mm).
Product features:
- Material: Body: Polyamide (Nylon); Plug: Brass, Nickel plated; Contact: BeCu, Nickel plated
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2011-0 | 4mm Plug, DIY Screw, Black | $2.60 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2011-2 | 4mm Plug, DIY Screw, Red | $2.60 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2011-4 | 4mm Plug, DIY Screw, Yellow | $2.60 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2011-5 | 4mm Plug, DIY Screw, Green | $2.60 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2011-6 | 4mm Plug, DIY Screw, Blue | $2.60 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2011-9 | 4mm Plug, DIY Screw, White | $3.10 | Special Order | 1 Year | Inline | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 36 | EA |
Specifications
- Type
- Inline
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Green
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
