Overview

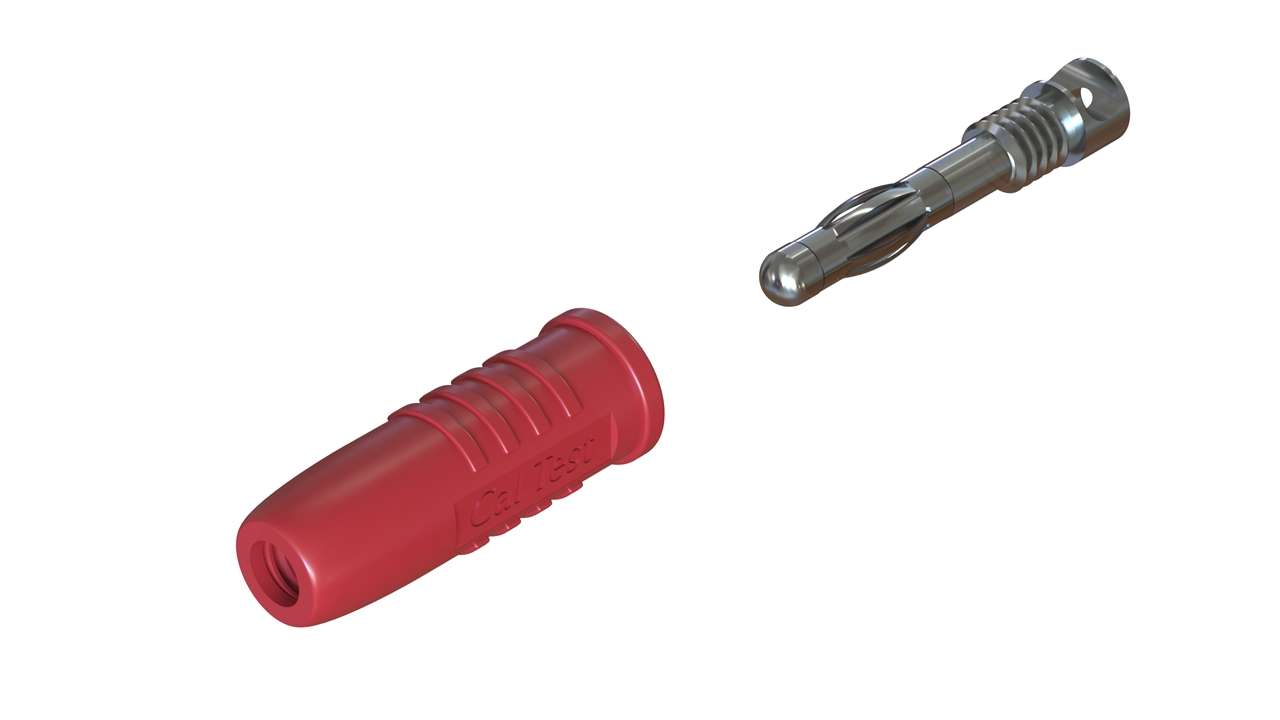

The CT2002A is a DIY 4 mm banana plug with solder terminal, designed for building or repairing custom test leads. It features a UL94 V-0 flame-retardant polypropylene insulator, nickel-plated brass plug body, and nickel-plated beryllium copper spring contact for dependable conductivity and long-lasting performance. Rated up to 36 A, with a voltage rating of 33 VAC / 70 VDC per IEC and up to 1200V AC/DC maximum for non-handheld applications, the CT2002A provides a secure, insulated connection for a variety of test and measurement applications.
Available in 6 standard colors for easy lead identification and organization.
Features
- Beryllium copper spring contact for long-lasting, reliable contact
- UL94 V-0 flame-retardant polypropylene insulator
- CE and RoHS 2 compliant
- Compatible with 4 mm jacks
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2002A-0 | 4mm Plug, DIY Solder, Black | $2.00 | Active Catalog | 1 Year | Inline | 33 VAC / 70 VDC | Black | Brass, Nickel Plated | Polypropylene | 36 | 1200V AC/DC | EA |
 |
CT2002A-2 | 4mm Plug, DIY Solder, Red | $2.00 | Active Catalog | 1 Year | Inline | 33 VAC / 70 VDC | Red | Brass, Nickel Plated | Polypropylene | 36 | 1200V AC/DC | EA |
 |
CT2002A-4 | 4mm Plug, DIY Solder, Yellow | $2.00 | Active Catalog | 1 Year | Inline | 33 VAC / 70 VDC | Yellow | Brass, Nickel Plated | Polypropylene | 36 | 1200V AC/DC | EA |
 |
CT2002A-5 | 4mm Plug, DIY Solder, Green | $2.00 | Active Catalog | 1 Year | Inline | 33 VAC / 70 VDC | Green | Brass, Nickel Plated | Polypropylene | 36 | 1200V AC/DC | EA |
 |
CT2002A-6 | 4mm Plug, DIY Solder, Blue | $2.00 | Active Catalog | 1 Year | Inline | 33 VAC / 70 VDC | Blue | Brass, Nickel Plated | Polypropylene | 36 | 1200V AC/DC | EA |
 |
CT2002A-9 | 4mm Plug, DIY Solder, White | $2.00 | Active Catalog | 1 Year | Inline | 33 VAC / 70 VDC | White | Brass, Nickel Plated | Polypropylene | 36 | 1200V AC/DC | EA |
Specifications
- Type
- Inline
- Rated Voltage
- 33 VAC / 70 VDC
- Color
- Red
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polypropylene
- Max Current
- 36
- Max Voltage
- 1200V AC/DC
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- Taiwan
- Lead Time
- 84 days
- See More Specifications
- Product Drawing
