CT2002-6
CT2002 Series
Active CatalogBanana Plug

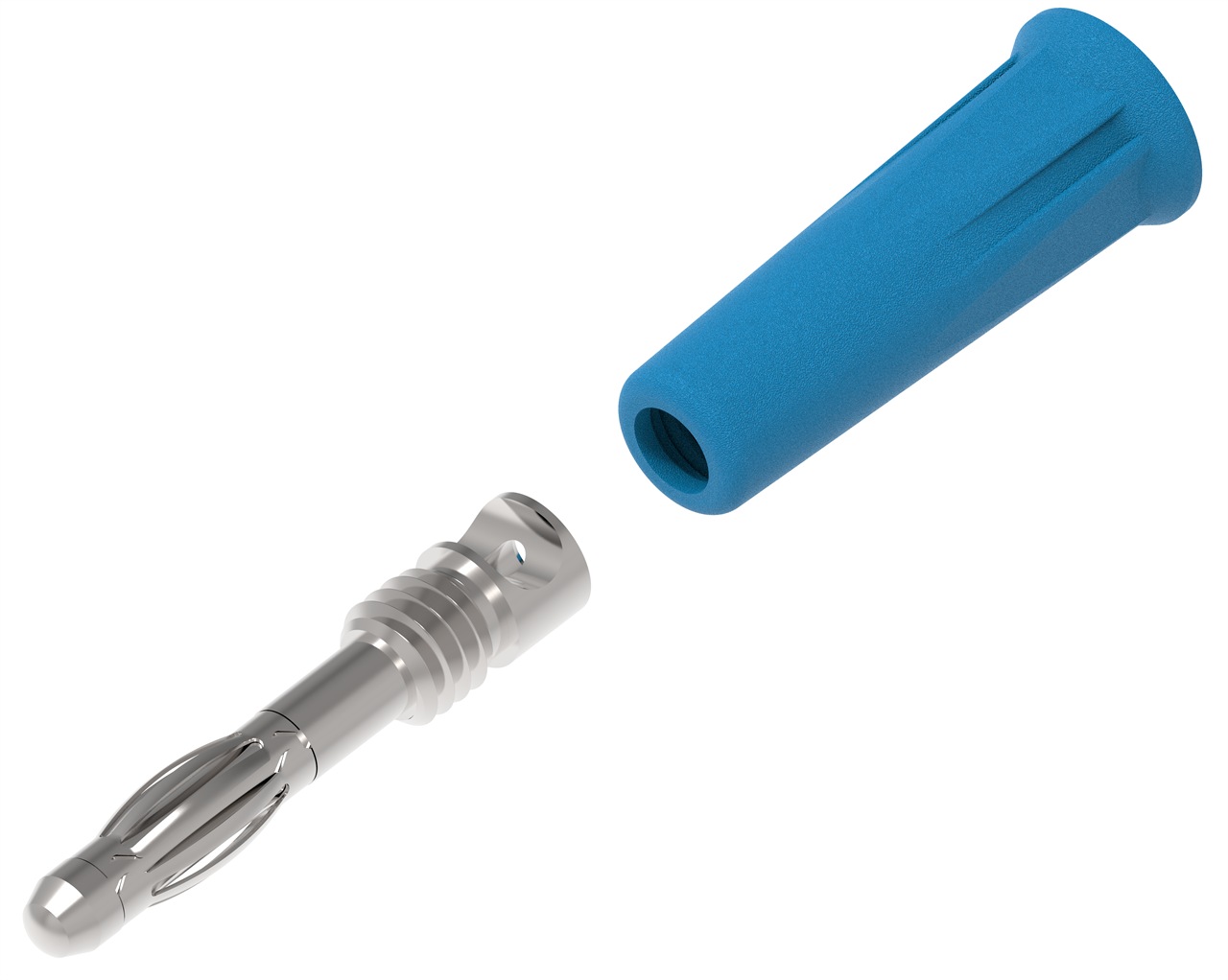

4 mm Banana Plug, Do It Yourself Solder, Blue
$2.001 Year Warranty
Where to Buy
Overview
4 mm Insulated straight or in-line banana plug for do-it-yourself wire assembly. Solder wire attachment then thread plug into the insulator.
Accepts up to 0.090" (2.3 mm) diameter conductor, approximately 13 AWG. Maximum wire jacket diameter 0.154" (3.9 mm).
Product features:
- Material: Body: Polyamide (Nylon); Plug: Brass, Nickel plated; Contact: BeCu, Nickel plated
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2002-0 | 4mm Plug, DIY Solder, Black | $2.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2002-2 | 4mm Plug, DIY Solder, Red | $2.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2002-4 | 4mm Plug, DIY Solder, Yellow | $2.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2002-5 | 4mm Plug, DIY Solder, Green | $2.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2002-6 | 4mm Plug, DIY Solder, Blue | $2.00 | Active Catalog | 1 Year | Inline | 30 VAC / 60 VDC | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2002-9 | 4mm Plug, DIY Solder, White | $2.50 | Special Order | 1 Year | Inline | 30 VAC / 60 VDC | White | Brass, Nickel Plated | Polyamide | 36 | EA |
Specifications
- Type
- Inline
- Rated Voltage
- 30 VAC / 60 VDC
- Color
- Blue
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
