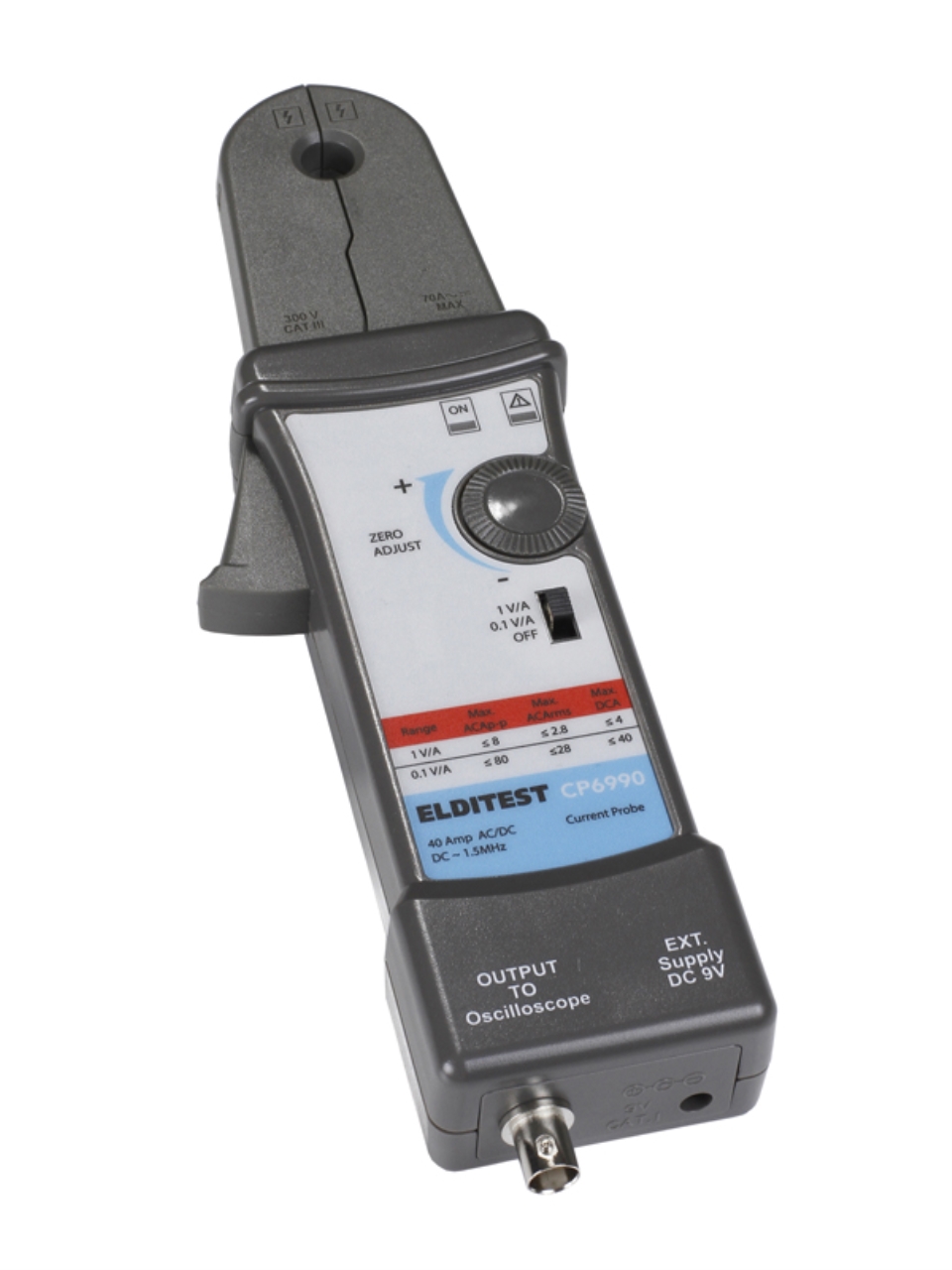

CP6990-NA
CP6990 Series
Active Catalog1.5 MHz Current Probe
Oscilloscope Current Probe, 1.5MHz, 40A AC/DC, NA Adapter
Where to Buy
Overview
Active clamp style current probe has dual sensitivity ranges, 1 V/A and 100 mV/A for current measurements up to 4 A or 40 A, respectively. Bandwidth in both ranges up to 1.5 MHz. Powered by 9 V battery or included AC power adapter (CT3957-#).
Model CP6990-EU includes AC power adapter with European style plugs.
Features:
- Compact stylish body
- Dual sensitivity ranges
- 1.5 MHz bandwidth (-3 dB)
- Over-range indicator
- Accessories: Insulated BNC Cable, BNC to Banana Plugs Adapter, AC Power Adapter, and Instruction Manual.
The series is marketed under the time-honored Elditest brand name in both North America and the European Union.
Active clamp style current probes extend the functionality of your oscilloscope.
Model CP6990 has dual sensitivity ranges, 1 V/A and 100 mV/A for current measurements up to 4 A or 40 A, respectively. Bandwidth in both ranges up to 1.5 MHz. Powered by 9 V battery (not included) or AC power adapter (included).
Select either product modifier EU for European style power adapter (CT3957-EU) or NA for North American style power adapter (CT3957-NA).
Features:
- Compact stylish body
- Dual sensitivity ranges
- 1.5 MHz bandwidth (-3 dB)
- Over-range indicator
- Kit contains:
- Current probe
- Insulated BNC Cable
- BNC to Banana Plugs Adapter
- AC Power Adapter
- User Manual
The series is marketed under the time-honored Elditest brand name in both North America and the European Union.
Models
| Image | Model | Description | MSRP | Status | Warranty | Current | Rated Voltage | Bandwidth | Plug Type | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CP6990-EU | Oscilloscope Current Probe, 1.5MHz, 40A AC/DC, EU Adapter | $1,490.00 | Active Catalog | 1 Year | 4 A / 40 A | 600 Vac RMS CAT II 300 Vac RMS CAT III | DC - 1.5 MHz | Europe | EA |
 |
CP6990-NA | Oscilloscope Current Probe, 1.5MHz, 40A AC/DC, NA Adapter | $1,490.00 | Active Catalog | 1 Year | 4 A / 40 A | 600 Vac RMS CAT II 300 Vac RMS CAT III | DC - 1.5 MHz | North America | EA |
Specifications
- Current
- 4 A / 40 A
- Rated Voltage
- 600 Vac RMS CAT II 300 Vac RMS CAT III
- Bandwidth
- DC - 1.5 MHz
- Plug Type
- North America
- Battery Life
- 4 hours
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
