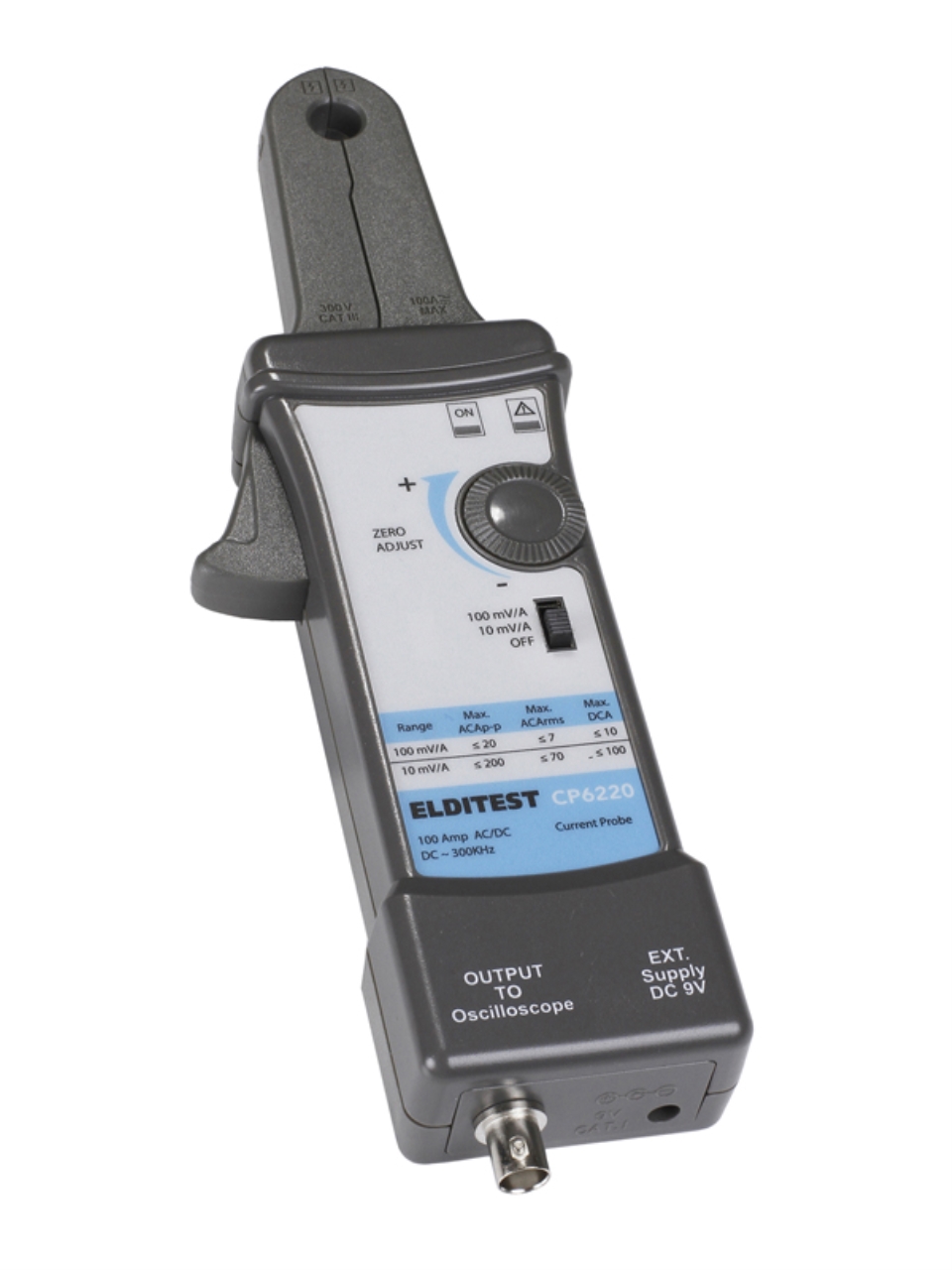

CP6220-EU
CP6220 Series
Active Catalog300 kHz Current Probe
Oscilloscope Current Probe, 300kHz, 100A AC/DC, EU Adapter
$625.001 Year Warranty
Where to Buy
Overview
Active clamp style current probes extend the functionality of your oscilloscope.
Model CP6220 has dual sensitivity ranges, 100 mV/A and 10 mV/A for current measurements up to 10 A or 100 A, respectively. Bandwidth in both ranges up to 300 kHz. Powered by 9 V battery (not included) or AC power adapter (included).
Select either product modifier EU for European style power adapter (CT3957-EU) or NA for North American style power adapter (CT3957-NA).
Features:
- Compact stylish body
- Dual sensitivity ranges
- 300 kHz bandwidth (-3 dB)
- Over-range indicator
- Kit contains:
- Current probe
- Insulated BNC Cable
- BNC to Banana Plugs Adapter
- AC Power Adapter
- User Manual
The series is marketed under the time-honored Elditest brand name in both North America and the European Union.
Models
| Image | Model | Description | MSRP | Status | Warranty | Current | Rated Voltage | Bandwidth | Plug Type | UOM |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CP6220-EU | Oscilloscope Current Probe, 300kHz, 100A AC/DC, EU Adapter | $625.00 | Active Catalog | 1 Year | 10 A / 100 A | 600 Vac RMS CAT II 300 Vac RMS CAT III | DC - 300 kHz | Europe | EA |
 |
CP6220-NA | Oscilloscope Current Probe, 300kHz, 100A AC/DC, NA Adapter | $625.00 | Active Catalog | 1 Year | 10 A / 100 A | 600 Vac RMS CAT II 300 Vac RMS CAT III | DC - 300 kHz | North America | EA |
Specifications
- Current
- 10 A / 100 A
- Rated Voltage
- 600 Vac RMS CAT II 300 Vac RMS CAT III
- Bandwidth
- DC - 300 kHz
- Plug Type
- Europe
- Battery Life
- 8 hours
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 9030.90.8010
- Country of Origin
- Taiwan
- Lead Time
- 49 days
- See More Specifications
- Manual
