1403
1403 Series

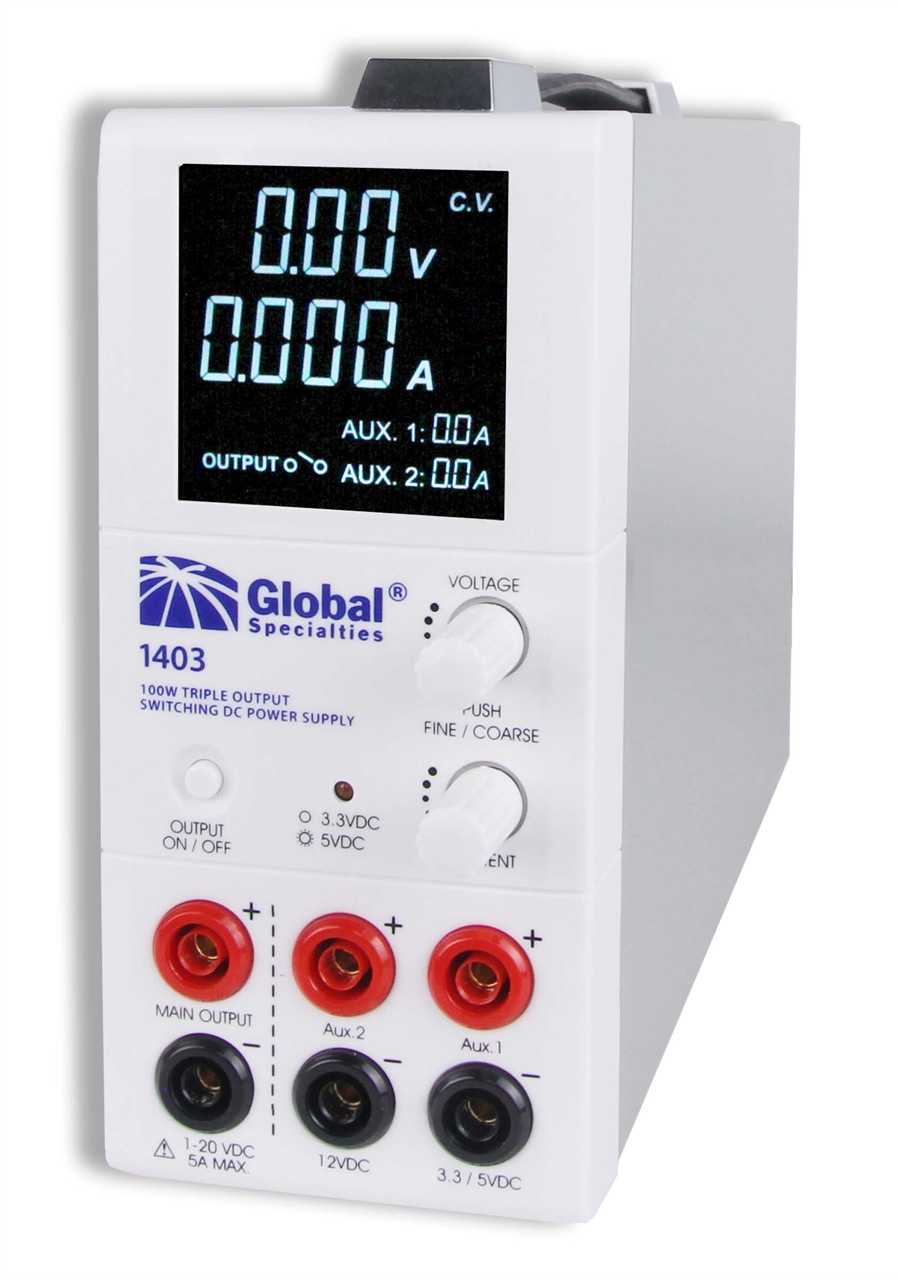

Active CatalogTriple Output Switching DC Power Supply: 1-20 V, 0-5 A & 3.3/5 V, 2 A & 12 V, 1 A
100W Triple Ouput Switching DC Power Supply
$295.001 Year Warranty
Overview
- Main Output: 1-20 VDC, 5 A (1403) and 1-36 VDC, 3 A (1405)
- Aux Output 1: 3.3 or 5 VDC (selectable), 2.0 A
- Aux Output 2: 12 VDC, 1.0 A
- Coarse & fine voltage/current controls
- CV/CC mode with automatic crossover
- Illuminated LCD indicators for A, V, Output On/Off, CC & CV.
- 4-digit display for main output
- 2-digit display for auxiliary current output
- Compact slim tower housing
- Output power on/off switch at front panel
- Over voltage, short circuit, overload, and over temperature protections
Specifications
- Type
- Power Supply
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8504.40.9550
- Country of Origin
- China
- Lead Time
- 84 days
