CT3134-S-9
CT3134 Series
Special OrderSheathed Banana Jack DIY
Do It Yourself, 4 mm Sheathed Banana Jack, Solder - White
$5.051 Year Warranty
Where to Buy
Overview
Individual 4 mm fully insulated Do-it-Yourself (DIY) in-line banana jack allows you to build your own test leads and meet the latest safety standards. Both solder and solderless versions with easy snap together assembly.
CT3134-# - Solderless version
- Dual set screw connection
Requires 1.5 mm allen wrench for assembly, CT2919
CT3134-S-# - Solder version
- Quick solder assembly
Features:
- IEC Voltage Rating - 1,000 V CAT III (*when using equally rated lead wire)

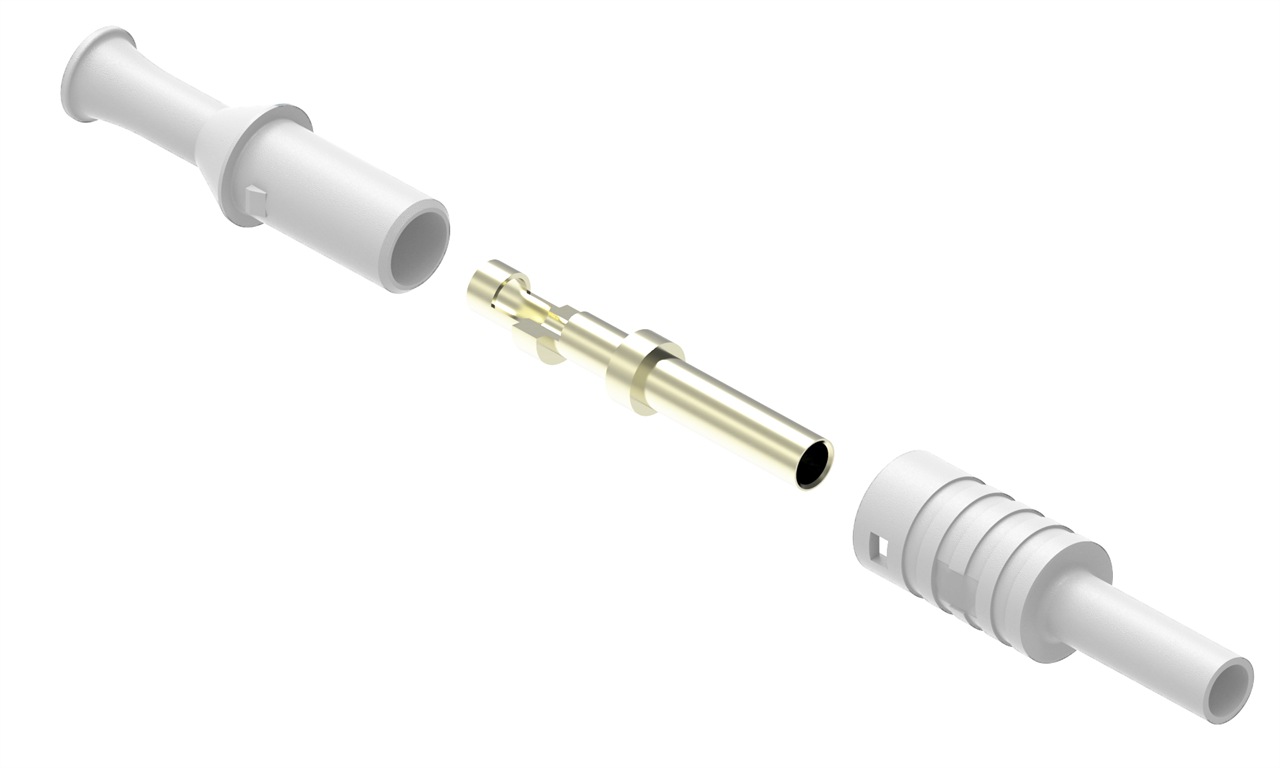

- Three (3) piece assembly
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | Max Voltage | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT3134-0 | DIY 4mm Shth Jack, Solderless - Black | $5.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Black | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-2 | DIY 4mm Shth Jack, Solderless - Red | $5.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Red | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-4 | DIY 4mm Shth Jack, Solderless - Yellow | $5.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Yellow | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-5 | DIY 4mm Shth Jack, Solderless - Green | $5.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Green | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-6 | DIY 4mm Shth Jack, Solderless - Blue | $5.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Blue | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-9 | DIY 4mm Shth Jack, Solderless - White | $6.05 | Special Order | 1 Year | Inline | 1000 V CAT II | White | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-S-0 | DIY 4mm Shth Jack, Solder - Black | $4.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Black | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-S-2 | DIY 4mm Shth Jack, Solder - Red | $4.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Red | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-S-4 | DIY 4mm Shth Jack, Solder - Yellow | $4.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Yellow | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-S-5 | DIY 4mm Shth Jack, Solder - Green | $4.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Green | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-S-6 | DIY 4mm Shth Jack, Solder - Blue | $4.55 | Active Catalog | 1 Year | Inline | 1000 V CAT II | Blue | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
 |
CT3134-S-9 | DIY 4mm Shth Jack, Solder - White | $5.05 | Special Order | 1 Year | Inline | 1000 V CAT II | White | Brass, Nickel Plated | Polyamide | 36 A | - | EA |
Specifications
- Type
- Inline
- Rated Voltage
- 1000 V CAT II
- Color
- White
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36 A
- Max Voltage
- -
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
