CT2631-S-0
CT2631 Series
Active CatalogStacking Banana Plug

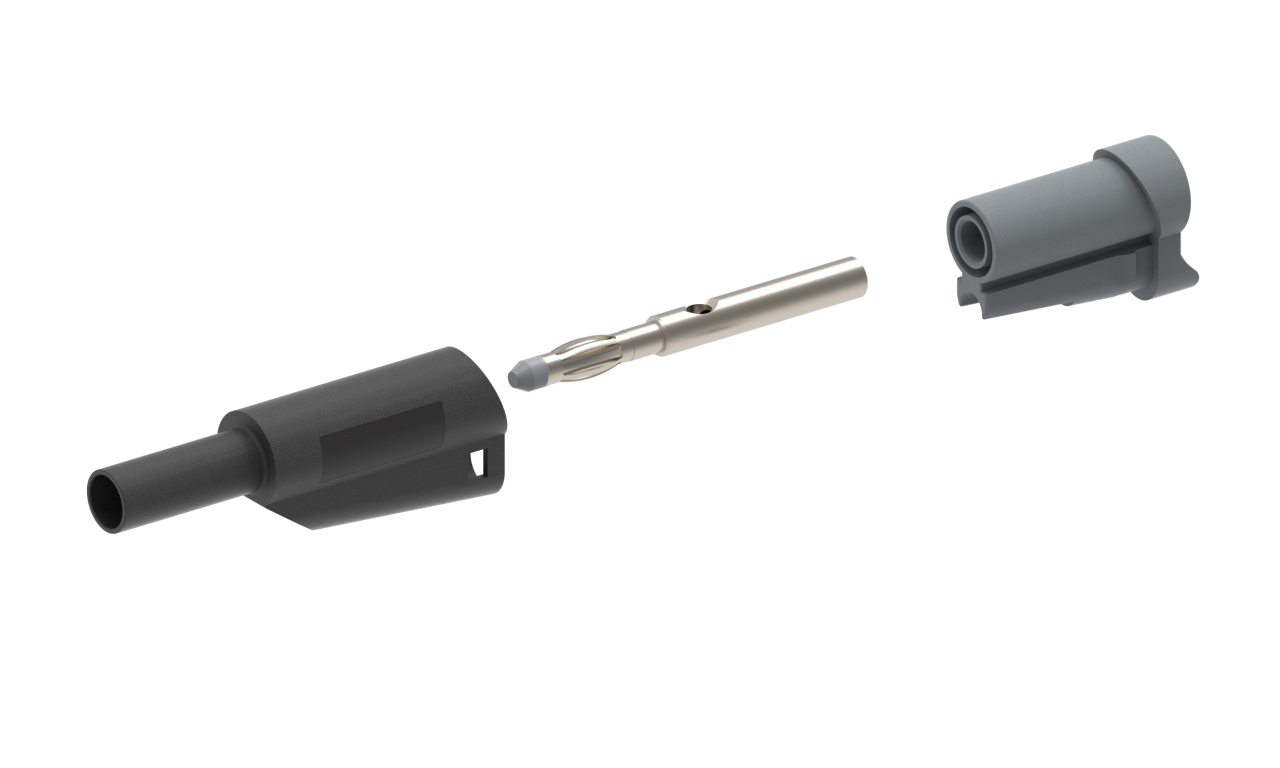

DIY 4mm StkShth Plug, Solder - Black
$5.701 Year Warranty
Where to Buy
Overview
4 mm fully insulated Do-it-Yourself (DIY) fixed sheathed stacking banana plug allow you to build your own test leads and meet the latest safety standards. Both solder and solderless versions with easy snap together assembly.
CT2631-# - Solderless version
- Set screw connection
Requires 1.5 mm allen wrench for assembly, CT2919
CT2631-S-# - Solder version
- Quick solder assembly
Features:
- IEC Voltage rating - 600 V CAT IV / 1000 V CAT III (*when using equally rated lead wire)
- Insulated tip on plug
- Three (3) piece assembly
- Available in 6 colors
Models
| Image | Model | Description | MSRP | Status | Warranty | Type | Rated Voltage | Color | Contact Material | Insulation Material | Max Current | UOM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CT2631-0 | DIY 4mm StkShth Plug, Solderless - Black | $6.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-2 | DIY 4mm StkShth Plug, Solderless - Red | $6.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-4 | DIY 4mm StkShth Plug, Solderless - Yellow | $6.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-5 | DIY 4mm StkShth Plug, Solderless - Green | $6.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-6 | DIY 4mm StkShth Plug, Solderless - Blue | $6.00 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-9 | DIY 4mm StkShth Plug, Solderless - White | $6.50 | Special Order | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | White | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-S-0 | DIY 4mm StkShth Plug, Solder - Black | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Black | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-S-2 | DIY 4mm StkShth Plug, Solder - Red | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Red | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-S-4 | DIY 4mm StkShth Plug, Solder - Yellow | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Yellow | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-S-5 | DIY 4mm StkShth Plug, Solder - Green | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Green | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-S-6 | DIY 4mm StkShth Plug, Solder - Blue | $5.70 | Active Catalog | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | Blue | Brass, Nickel Plated | Polyamide | 36 | EA |
 |
CT2631-S-9 | DIY 4mm StkShth Plug, Solder - White | $6.20 | Special Order | 1 Year | Sheathed | 1000 V CAT III / 600 V CAT IV | White | Brass, Nickel Plated | Polyamide | 36 | EA |
Specifications
- Type
- Sheathed
- Rated Voltage
- 1000 V CAT III / 600 V CAT IV
- Color
- Black
- Contact Material
- Brass, Nickel Plated
- Insulation Material
- Polyamide
- Max Current
- 36
- Operating Temperature
- -20° to +80°C
- Export Control Classification Number (ECCN)
- EAR99
- REACH Compliance
- Compliant
- RoHS Compliance
- RoHS 2 (2015/863/EU) Compliant
- Schedule B Number
- 8536.90.4000
- Country of Origin
- France
- Lead Time
- 56 days
- See More Specifications
- Product Drawing
